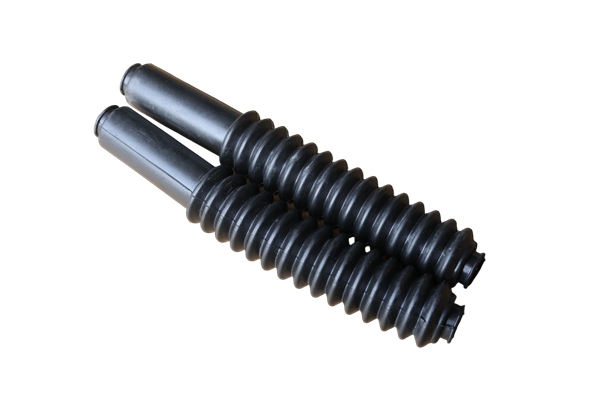

Rubber Dust Boot & Spring Bellows Protective Cover

The Rubber Dust Boot & Spring Bellows Protective Cover is a multi-functional industrial and automotive accessory engineered to deliver comprehensive protection for mechanical components, springs, and moving parts across diverse applications. Combining three core protective designs—dust boot, spring 护套 (spring cover), and bellows sleeve—this integrated rubber solution serves as a robust barrier against dust, moisture, debris, corrosion, and mechanical wear, while accommodating axial and radial movement of components. Crafted from high-grade elastic rubber with precision molding technology, it is widely used in automotive suspension systems, industrial machinery, hydraulic/pneumatic cylinders, valves, and mechanical linkages, safeguarding critical parts from harsh operating environments. Available in customizable configurations to fit various component sizes and movement requirements, this protective cover balances flexibility, durability, and sealing performance, making it an indispensable solution for extending the lifespan of mechanical systems and reducing maintenance costs.

Core Features

1. Premium Rubber Construction for Superior Protection & Flexibility

Constructed from a high-quality blend of synthetic rubber (EPDM, neoprene, nitrile, or silicone) or natural rubber, the protective cover is tailored to withstand extreme conditions and mechanical stress. EPDM rubber offers exceptional weather, ozone, and UV resistance—ideal for outdoor applications such as automotive suspension boots. Neoprene excels in oil, chemical, and abrasion resistance, making it suitable for industrial machinery and hydraulic components. Silicone delivers high-temperature stability (-60℃ to +200℃) for high-heat environments, while nitrile provides superior durability against fuels and lubricants. The rubber’s inherent elasticity ensures excellent compression recovery and flexibility, allowing the cover to expand, contract, and bend with component movement without tearing or losing shape. Its dense, uniform structure effectively blocks dust, water, dirt, and corrosive substances, preventing internal component damage and ensuring long-term reliability.

2. Multi-Design Integration for Comprehensive Protection

Integrating dust boot, spring cover, and bellows functionalities, this protective cover addresses multiple critical needs:

Dust & Moisture Sealing (Dust Boot Function): The closed-end or flanged design creates a tight seal around components, preventing dust, water, mud, and debris from infiltrating bearings, joints, or hydraulic cylinders. This eliminates corrosion, friction, and premature wear caused by contamination, ensuring smooth component operation.

Spring Protection (Spring Cover Function): Wraps around coil springs (automotive suspension springs, industrial compression springs) to shield them from rust, abrasion, and impact damage. It also reduces noise generated by spring vibration and prevents contact damage to adjacent components.

Flexible Movement Accommodation (Bellows Function): The corrugated (bellows) structure allows for maximum axial and radial flexibility, accommodating linear movement, rotation, and angular deflection of components such as telescopic cylinders, steering rods, or mechanical linkages. The bellows design minimizes tension and stress during movement, ensuring the cover remains intact and effective even under frequent motion.

3. Customizable Configurations for Diverse Applications

Available in a wide range of standard and custom configurations to fit specific component requirements:

Sizes & Dimensions: Inner diameters ranging from 10mm to 200mm, lengths from 20mm to 500mm, and bellows pleat counts tailored to movement stroke needs. Customizable flange sizes and mounting options (clamp-on, press-fit, adhesive-backed) ensure secure installation on various components.

Shapes & Profiles: Cylindrical bellows, conical dust boots, and spring-specific sleeves to match component geometries (e.g., coil springs, piston rods, valve stems). Open or closed-end designs are available based on application needs—closed-end for full sealing, open-end for partial coverage with movement flexibility.

Material Hardness: Shore A hardness ranging from 40° (soft, highly flexible) to 70° (firm, wear-resistant), optimized for different movement ranges and environmental conditions.

Specialized Features: Reinforced walls for heavy-duty applications, anti-static properties for explosive environments, or FDA-compliant materials for food processing machinery.

4. Easy Installation & Low Maintenance

Designed for hassle-free installation and long-term use, the protective cover requires no specialized tools or complex modifications. It can be installed via press-fitting onto component shafts, securing with clamps or O-rings, or utilizing integrated mounting flanges for a permanent seal. The durable rubber construction resists tearing, cracking, and degradation, minimizing the need for frequent replacement. Unlike rigid protective covers, its flexible design eliminates binding or restriction of component movement, ensuring uncompromised functionality. Additionally, the smooth or corrugated surface is easy to clean, reducing maintenance time and costs. Suitable for both indoor and outdoor applications, it performs reliably in extreme temperatures, humidity, and industrial environments.

Quality Assurance

This Rubber Dust Boot & Spring Bellows Protective Cover complies with international quality standards (ISO 9001, RoHS, REACH) and undergoes rigorous performance testing, including flexibility tests, abrasion resistance tests, sealing efficiency tests, high-low temperature resistance tests, and chemical compatibility tests. Each unit is inspected for dimensional accuracy, material quality, and structural integrity to ensure it meets or exceeds industry requirements. The manufacturing process adheres to strict quality control protocols, from material selection to molding and finishing, guaranteeing consistency and reliability. Supplied as individual units, bulk quantities, or custom kits, it offers cost-effective protection for automotive, industrial, and mechanical systems. Choose this high-quality protective cover to safeguard critical components, extend equipment lifespan, and ensure smooth, trouble-free operation in demanding environments.
